Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Function floating contact on energizationYes
Suitable for front mountingNo
Depth103.7mm
Function delay-on energizationNo
Function flashing, starting with pause, fixed timeNo
Clock function, starting with pause, variableNo
With semiconductor outputNo
Remote operation possibleYes
Nominal current4A
Height85.6mm
With plug-in socketNo
Function flashing, starting with pulse, fixed timeNo
Clock function, starting with pulse, variableNo
Suitable as remote controlNo
Time range0.05 - 1080000s
Function star-deltaNo
Number of outputs, undelayed, change-over contact2
Function delay on de-energizationNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Function pulse shapingNo
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at DC24 - 48V
Function floating contact on de-energizationNo
Outputs, reversible delayed/undelayedNo
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Pluggable on auxiliary contact blockNo
Suitable for DIN rail (top hat rail) mountingYes
Type of electric connectionSpring clamp connection
Complete with socketNo
Type of excitationAnalogue with multi function
Number of outputs, delayed, change-over contact2
Voltage type for actuatingAC/DC
Width22.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

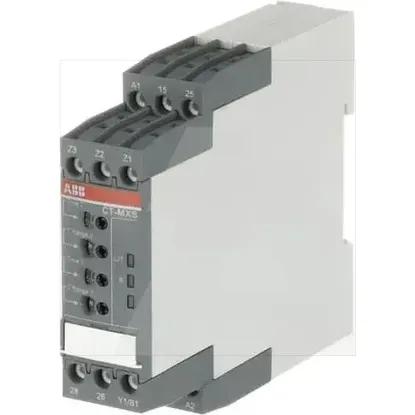

1SVR740030R3300 | CT-MXS.22P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Function floating contact on energization
Suitable for front mounting
Depth
103.7mm
Function delay-on energization
Function flashing, starting with pause, fixed time
Clock function, starting with pause, variable
With semiconductor output
Remote operation possible
Nominal current
4A
Height
85.6mm
With plug-in socket
Function flashing, starting with pulse, fixed time
Clock function, starting with pulse, variable
Suitable as remote control
Time range
0.05 .. 1080000s
Function star-delta
Number of outputs, undelayed, change-over contact
2
Function delay on de-energization
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Function pulse shaping
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, normally closed contact
0
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Rated control supply voltage Us at DC
24 .. 48V
Function floating contact on de-energization
Outputs, reversible delayed/undelayed
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Pluggable on auxiliary contact block
Suitable for DIN rail (top hat rail) mounting
Type of electric connection
Spring clamp connection
Complete with socket
Type of excitation
Analogue with multi function
Number of outputs, delayed, change-over contact
2
Voltage type for actuating
AC/DC
Width
22.5mm
