Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Type of electric connectionSpring clamp connection
Function pulse shapingNo
Clock function, starting with pause, variableNo
Time range0.05 - 1080000s
Function delay-on energizationYes
Function flashing, starting with pause, fixed timeYes
Height85.6mm
Width22.5mm
Number of outputs, undelayed, change-over contact2
Function delay on de-energizationNo
Function floating contact on de-energizationNo
Function floating contact on energizationYes
Function star-deltaNo
Voltage type for actuatingAC/DC
Suitable for DIN rail (top hat rail) mountingYes
Function flashing, starting with pulse, fixed timeYes
With plug-in socketNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Remote operation possibleNo
Pluggable on auxiliary contact blockNo
Suitable as remote controlNo
Clock function, starting with pulse, variableNo
Rated control supply voltage Us at DC24 - 48V
With semiconductor outputNo
Nominal current4A
Rated control supply voltage Us at AC 60HZ24 - 240V
Outputs, reversible delayed/undelayedNo
Number of outputs, delayed, change-over contact2
Depth103.7mm
Suitable for front mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

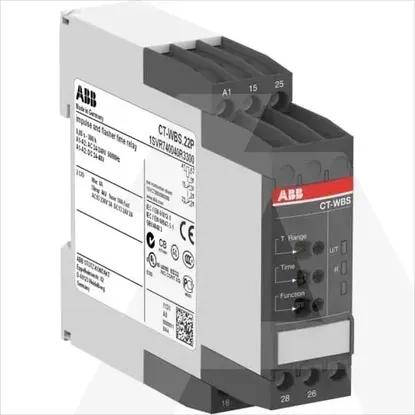

1SVR740040R3300 | CT-WBS.22P
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Type of electric connection
Spring clamp connection
Function pulse shaping
Clock function, starting with pause, variable
Time range
0.05 .. 1080000s
Function delay-on energization
Function flashing, starting with pause, fixed time
Height
85.6mm
Width
22.5mm
Number of outputs, undelayed, change-over contact
2
Function delay on de-energization
Function floating contact on de-energization
Function floating contact on energization
Function star-delta
Voltage type for actuating
AC/DC
Suitable for DIN rail (top hat rail) mounting
Function flashing, starting with pulse, fixed time
With plug-in socket
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Remote operation possible
Pluggable on auxiliary contact block
Suitable as remote control
Clock function, starting with pulse, variable
Rated control supply voltage Us at DC
24 .. 48V
With semiconductor output
Nominal current
4A
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Outputs, reversible delayed/undelayed
Number of outputs, delayed, change-over contact
2
Depth
103.7mm
Suitable for front mounting
