Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Nominal current4A
Suitable for front mountingNo
Function flashing, starting with pause, fixed timeNo
With plug-in socketNo
Function flashing, starting with pulse, fixed timeNo
Remote operation possibleNo
Clock function, starting with pulse, variableNo
Height85.6mm
Clock function, starting with pause, variableNo
Suitable as remote controlNo
Number of outputs, undelayed, change-over contact2
Function floating contact on de-energizationNo
Function pulse shapingNo
Type of electric connectionSpring clamp connection
Depth103.7mm
Function delay on de-energizationNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Function floating contact on energizationNo
Function star-deltaNo
Time range0.05 - 1080000s
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at DC24 - 48V
Number of outputs, delayed, normally closed contact0
Outputs, reversible delayed/undelayedNo
Number of outputs, delayed, normally open contact0
Pluggable on auxiliary contact blockNo
Suitable for DIN rail (top hat rail) mountingYes
Number of outputs, delayed, change-over contact2
With semiconductor outputNo
Voltage type for actuatingAC/DC
Width22.5mm
Function delay-on energizationYes
Type of excitationAnalogue with single function
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

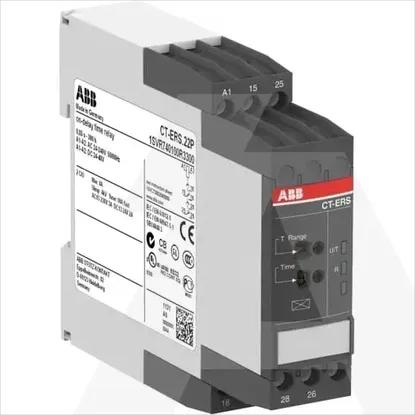

1SVR740100R3300 | CT-ERS.22P
