Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width22.5mm
Nominal current4A
Depth103.7mm
Suitable for front mountingNo
Remote operation possibleNo
Suitable as remote controlNo
Height85.6mm
With plug-in socketNo
Time range0.05 - 600s
Rated control supply voltage Us at DC24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Outputs, reversible delayed/undelayedNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Type of electric connectionSpring clamp connection
Complete with socketNo
Type of excitationAnalogue with single function
Suitable for DIN rail (top hat rail) mountingYes
Suitable for front mountingNo
Function delay on de-energizationYes
Pluggable on auxiliary contact blockNo
Function delay-on energizationNo
Function floating contact on energizationNo
Function floating contact on de-energizationNo
Function star-deltaNo
Function pulse shapingNo
Function flashing, starting with pause, fixed timeNo
Function flashing, starting with pulse, fixed timeNo
Clock function, starting with pause, variableNo
Clock function, starting with pulse, variableNo
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, change-over contact0
Voltage type for actuatingAC/DC
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Number of outputs, delayed, change-over contact1
With semiconductor outputNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

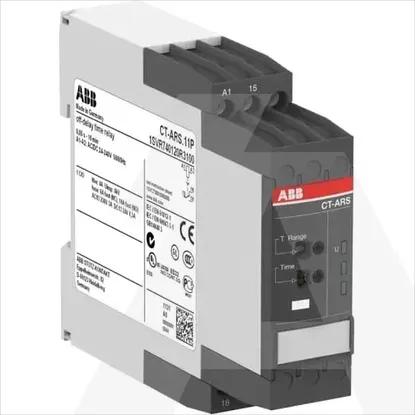

1SVR740120R3100 | CT-ARS.11P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
22.5mm
Nominal current
4A
Depth
103.7mm
Suitable for front mounting
Remote operation possible
Suitable as remote control
Height
85.6mm
With plug-in socket
Time range
0.05 .. 600s
Rated control supply voltage Us at DC
24 .. 240V
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Outputs, reversible delayed/undelayed
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Type of electric connection
Spring clamp connection
Complete with socket
Type of excitation
Analogue with single function
Suitable for DIN rail (top hat rail) mounting
Suitable for front mounting
Function delay on de-energization
Pluggable on auxiliary contact block
Function delay-on energization
Function floating contact on energization
Function floating contact on de-energization
Function star-delta
Function pulse shaping
Function flashing, starting with pause, fixed time
Function flashing, starting with pulse, fixed time
Clock function, starting with pause, variable
Clock function, starting with pulse, variable
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Voltage type for actuating
AC/DC
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
With semiconductor output
