Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width22.5mm
Height85.6mm
Suitable for front mountingNo
Depth103.7mm
Suitable as remote controlNo
Nominal current4A
Remote operation possibleNo
With plug-in socketNo
Function flashing, starting with pulse, fixed timeNo
Clock function, starting with pause, variableNo
Function flashing, starting with pause, fixed timeNo
With semiconductor outputNo
Clock function, starting with pulse, variableNo
Function star-deltaNo
Function floating contact on energizationNo
Time range0.05 - 600s
Number of outputs, undelayed, normally open contact0
Function pulse shapingNo
Number of outputs, delayed, normally closed contact0
Rated control supply voltage Us at AC 50HZ24 - 240V
Number of outputs, delayed, normally open contact0
Rated control supply voltage Us at AC 60HZ24 - 240V
Pluggable on auxiliary contact blockNo
Rated control supply voltage Us at DC24 - 240V
Number of outputs, undelayed, change-over contact2
Number of outputs, undelayed, normally closed contact0
Outputs, reversible delayed/undelayedNo
Function floating contact on de-energizationNo
Type of electric connectionSpring clamp connection
Voltage type for actuatingAC/DC
Function delay-on energizationNo
Number of outputs, delayed, change-over contact2
Type of excitationAnalogue with single function
Function delay on de-energizationYes
Suitable for DIN rail (top hat rail) mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

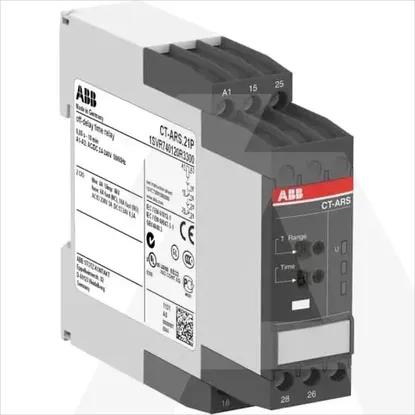

1SVR740120R3300 | CT.ARS.21P
