Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at DC- - -V
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, change-over contact0
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, change-over contact0
Function delay on de-energizationNo
Function floating contact on energizationNo
Function star-deltaYes
Type of electric connectionSpring clamp connection
Function delay-on energizationNo
Clock function, starting with pause, variableNo
With plug-in socketNo
Function pulse shapingNo
Clock function, starting with pulse, variableNo
Function flashing, starting with pause, fixed timeNo
Function floating contact on de-energizationNo
Remote operation possibleNo
Rated control supply voltage Us at AC 50HZ380 - 440V
Voltage type for actuatingAC
Pluggable on auxiliary contact blockNo
Rated control supply voltage Us at AC 60HZ380 - 440V
Function flashing, starting with pulse, fixed timeNo
Time range0.05 - 600s
Suitable as remote controlNo
Number of outputs, delayed, normally open contact2
Number of outputs, undelayed, normally open contact2
Suitable for DIN rail (top hat rail) mountingYes
Suitable for front mountingNo
Width22.5mm
With semiconductor outputNo
Height85.6mm
Depth103.7mm
Outputs, reversible delayed/undelayedNo
Nominal current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

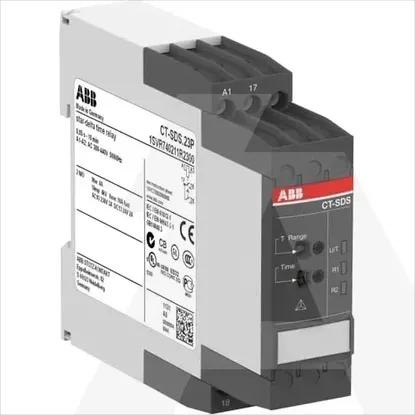

1SVR740211R2300 | CT-SDS.23P
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at DC
- .. -V
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, change-over contact
0
Function delay on de-energization
Function floating contact on energization
Function star-delta
Type of electric connection
Spring clamp connection
Function delay-on energization
Clock function, starting with pause, variable
With plug-in socket
Function pulse shaping
Clock function, starting with pulse, variable
Function flashing, starting with pause, fixed time
Function floating contact on de-energization
Remote operation possible
Rated control supply voltage Us at AC 50HZ
380 .. 440V
Voltage type for actuating
AC
Pluggable on auxiliary contact block
Rated control supply voltage Us at AC 60HZ
380 .. 440V
Function flashing, starting with pulse, fixed time
Time range
0.05 .. 600s
Suitable as remote control
Number of outputs, delayed, normally open contact
2
Number of outputs, undelayed, normally open contact
2
Suitable for DIN rail (top hat rail) mounting
Suitable for front mounting
Width
22.5mm
With semiconductor output
Height
85.6mm
Depth
103.7mm
Outputs, reversible delayed/undelayed
Nominal current
4A
