Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
External current transformerNo
Height85.6mm
Width22.5mm
Depth103.7mm
Current measuring range0.1 - 1A
Single-phase under current possibleYes
With detachable clampsNo
Single-phase hysteresis possibleYes
Single-phase over current possibleYes
Three-phase under current possibleNo
Contains function DC-voltage under currentYes
Three-phase hysteresis possibleNo
Three-phase over current possibleNo
Min. adjustable delay-on energization time0.1s
Type of electric connectionSpring clamp connection
Contains function DC-voltage over currentYes
Rated control supply voltage Us at DC24 - 240V
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Function DC-current hysteresisYes
Max. permitted delay-on energization time30s
Max. permitted off-delay time30s
Voltage type for actuatingAC/DC
Number of contacts as change-over contact2
Number of contacts as normally closed contact-
Number of contacts as normally open contact-
Min. adjustable off-delay time0.1s
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

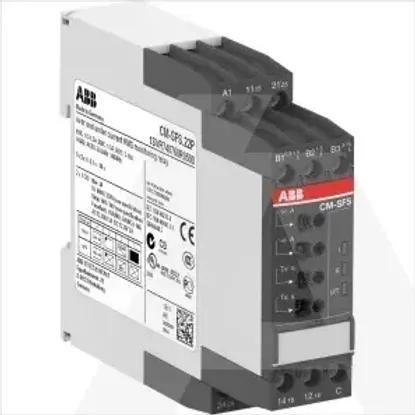

1SVR740760R0400 | CM-SFS.21P
