Details
- •Relays
- •Phase monitoring relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at DC- - -V
Number of contacts as normally closed contact-
Number of contacts as normally open contact-
Phase sequence monitoringYes
Phase failure detectionYes
Type of electric connectionSpring clamp connection
Rated control supply voltage Us at AC 50HZ160 - 300V
Function under voltage detectionYes
Phase imbalance monitoringYes
Min. adjustable off-delay time0.1s
Max. permitted off-delay time30s
Voltage measuring range160 - 300V
Min. adjustable delay-on energization time0.2s
Rated control supply voltage Us at AC 60HZ160 - 300V
Function over voltage detectionYes
Voltage type for actuatingAC
Max. permitted delay-on energization time0.2s
With detachable clampsNo
Depth103.7mm
Height85.6mm
Number of contacts as change-over contact2
Width22.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

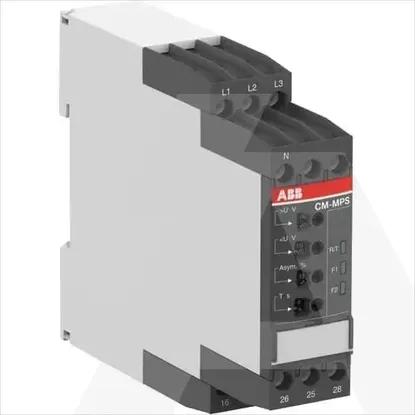

1SVR740884R1300 | CM-MPS.31P
Details
- Relays
- Phase monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at DC
- .. -V
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Phase sequence monitoring
Phase failure detection
Type of electric connection
Spring clamp connection
Rated control supply voltage Us at AC 50HZ
160 .. 300V
Function under voltage detection
Phase imbalance monitoring
Min. adjustable off-delay time
0.1s
Max. permitted off-delay time
30s
Voltage measuring range
160 .. 300V
Min. adjustable delay-on energization time
0.2s
Rated control supply voltage Us at AC 60HZ
160 .. 300V
Function over voltage detection
Voltage type for actuating
AC
Max. permitted delay-on energization time
0.2s
With detachable clamps
Depth
103.7mm
Height
85.6mm
Number of contacts as change-over contact
2
Width
22.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
