Details
- •Relays
- •Phase monitoring relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at DC- - -V
Number of contacts as normally closed contact-
Number of contacts as normally open contact-
Type of electric connectionSpring clamp connection
Function over voltage detectionYes
Phase failure detectionYes
Min. adjustable delay-on energization time0.2s
Depth103.7mm
Min. adjustable off-delay time0.1s
Voltage measuring range180 - 280V
Number of contacts as change-over contact2
Width22.5mm
Max. permitted off-delay time30s
Function under voltage detectionYes
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ180 - 280V
Phase sequence monitoringYes
Max. permitted delay-on energization time0.2s
Height85.6mm
Phase imbalance monitoringYes
With detachable clampsNo
Rated control supply voltage Us at AC 50HZ180 - 280V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

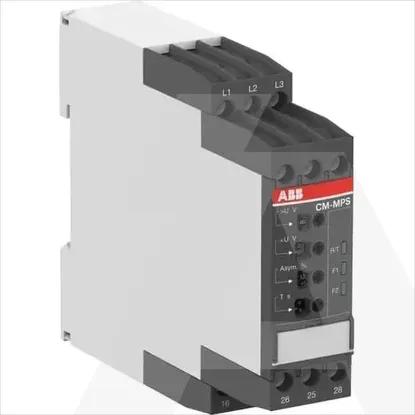

1SVR740885R4300 | CM-MPS.23P
Details
- Relays
- Phase monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at DC
- .. -V
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Type of electric connection
Spring clamp connection
Function over voltage detection
Phase failure detection
Min. adjustable delay-on energization time
0.2s
Depth
103.7mm
Min. adjustable off-delay time
0.1s
Voltage measuring range
180 .. 280V
Number of contacts as change-over contact
2
Width
22.5mm
Max. permitted off-delay time
30s
Function under voltage detection
Voltage type for actuating
AC
Rated control supply voltage Us at AC 60HZ
180 .. 280V
Phase sequence monitoring
Max. permitted delay-on energization time
0.2s
Height
85.6mm
Phase imbalance monitoring
With detachable clamps
Rated control supply voltage Us at AC 50HZ
180 .. 280V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
