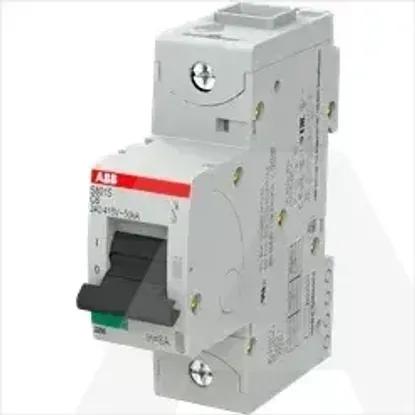

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Current limiting class3
Rated voltage400V
Voltage typeAC
Rated insulation voltage Ui690V
Pollution degree3
Frequency50 - 60Hz
Over voltage category3
Built-in depth82.5mm
Width in number of modular spacings1
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 50mm²
Suitable for flush-mounted installationNo
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated current6A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
