Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current20A
Release characteristicC
Frequency50 - 60Hz
Rated voltage400V
Built-in depth82.5mm
Rated insulation voltage Ui690V
Voltage typeAC
Current limiting class3
Suitable for flush-mounted installationNo
Width in number of modular spacings1
Connectable conductor cross section solid-core0 - 50mm²
Concurrently switching neutral conductorNo
Number of protected poles1
Pollution degree3
Additional equipment possibleYes
Over voltage category3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Number of poles (total)1
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

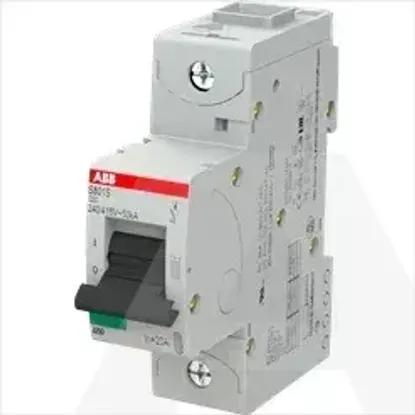

2CCS861001R0204 | S801S-C20
