Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Number of poles (total)1
Release characteristicK
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated current13A
Number of protected poles1
Rated insulation voltage Ui690V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Voltage typeAC
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Frequency50 - 60Hz
Current limiting class3
Rated impulse withstand voltage Uimp8kV
Over voltage category3
Pollution degree3
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings1
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Built-in depth82.5mm
Connectable conductor cross section solid-core0 - 50mm²
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

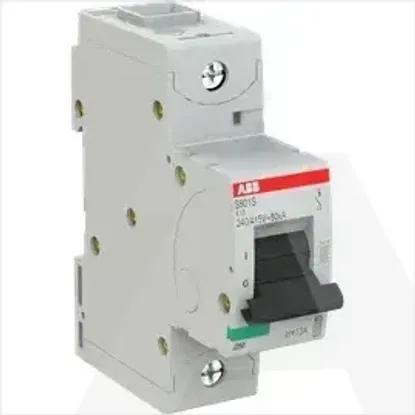

2CCS861001R0447 | S801S-K13
