Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)1
Release characteristicK
Rated insulation voltage Ui690V
Number of protected poles1
Rated current25A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Pollution degree3
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Current limiting class3
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Connectable conductor cross section multi-wired0 - 70mm²
Ambient temperature during operating-25 - 60°C
Over voltage category3
Width in number of modular spacings1
Connectable conductor cross section solid-core0 - 50mm²
Voltage typeAC
Rated impulse withstand voltage Uimp8kV
Built-in depth82.5mm
Frequency50 - 60Hz
Rated voltage400V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

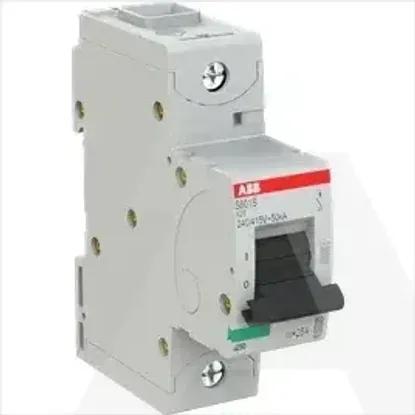

2CCS861001R0517 | S801S-K25
