Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Rated current32A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated insulation voltage Ui690V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Number of protected poles1
Rated impulse withstand voltage Uimp8kV
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Number of poles (total)1
Width in number of modular spacings1
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Voltage typeAC
Built-in depth82.5mm
Over voltage category3
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

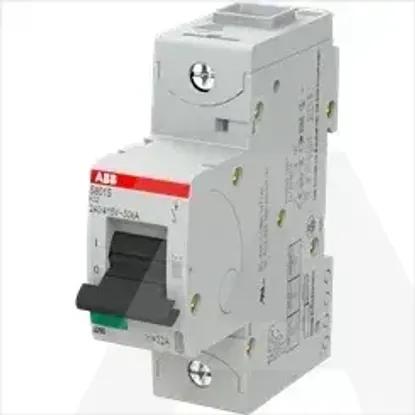

2CCS861001R0537 | S801S-K32
