Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Rated current63A
Rated voltage400V
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Concurrently switching neutral conductorNo
Built-in depth82.5mm
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of poles (total)1
Degree of protection (IP)IP20
Frequency50 - 60Hz
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated insulation voltage Ui690V
Connectable conductor cross section solid-core0 - 50mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
Over voltage category3
Ambient temperature during operating-25 - 60°C
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Width in number of modular spacings1
Voltage typeAC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

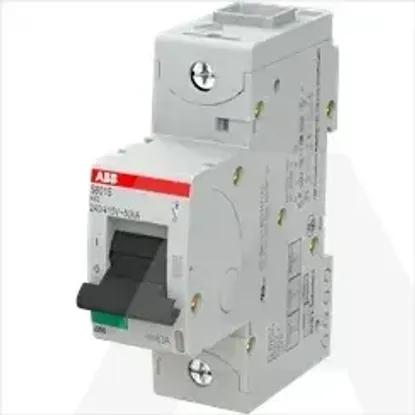

2CCS861001R0597 | S801S-K63
