Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Release characteristicC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of protected poles1
Rated voltage400V
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Current limiting class3
Over voltage category3
Pollution degree3
Width in number of modular spacings1
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated current63A
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 70mm²
Rated insulation voltage Ui690V
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Additional equipment possibleYes
Frequency50 - 60Hz
Number of poles (total)1
Built-in depth82.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CCS861001R0634 | S801S-C63

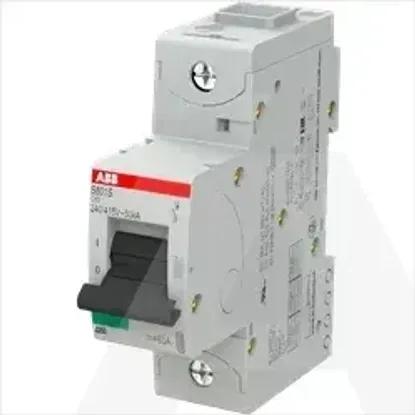

Main Product Image
