Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Voltage typeDC
Rated current10A
Current limiting class3
Pollution degree2
Width in number of modular spacings1
Degree of protection (IP)IP20
FrequencyHz
Concurrently switching neutral conductorNo
Number of protected poles1
Suitable for flush-mounted installationNo
Rated insulation voltage Ui1000V
Built-in depth82.5mm
Rated voltage250V
Release characteristicB
Rated impulse withstand voltage Uimp8kV
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

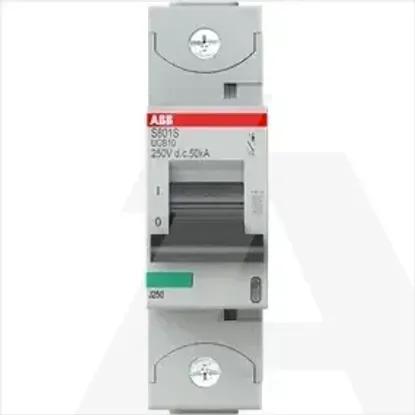

2CCS861001R1105 | S801S-UCB10
