Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
FrequencyHz
Rated current25A
Number of poles (total)1
Release characteristicB
Number of protected poles1
Rated insulation voltage Ui1000V
Rated voltage250V
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Voltage typeDC
Current limiting class3
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Over voltage category3
Pollution degree2
Additional equipment possibleYes
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 70mm²
Built-in depth82.5mm
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

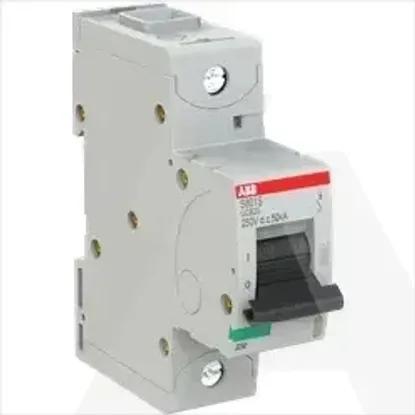

2CCS861001R1255 | S801S-UCB25
