Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
FrequencyHz
Rated current32A
Rated voltage250V
Concurrently switching neutral conductorNo
Rated insulation voltage Ui1000V
Built-in depth82.5mm
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Additional equipment possibleYes
Current limiting class3
Suitable for flush-mounted installationNo
Release characteristicB
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
Width in number of modular spacings1
Number of poles (total)1
Connectable conductor cross section multi-wired0 - 70mm²
Number of protected poles1
Connectable conductor cross section solid-core0 - 50mm²
Voltage typeDC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

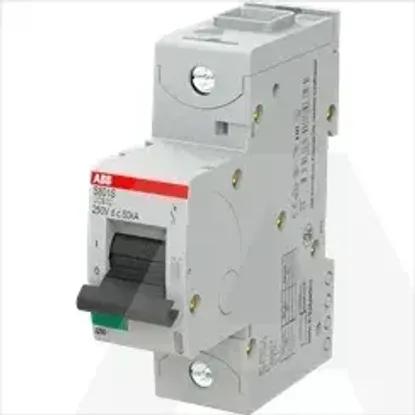

2CCS861001R1325 | S801S-UCB32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Over voltage category
3
Frequency
Hz
Rated current
32A
Rated voltage
250V
Concurrently switching neutral conductor
Rated insulation voltage Ui
1000V
Built-in depth
82.5mm
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
50kA
Additional equipment possible
Current limiting class
3
Suitable for flush-mounted installation
Release characteristic
B
Ambient temperature during operating
-25 .. 60°C
Degree of protection (IP)
IP20
Width in number of modular spacings
1
Number of poles (total)
1
Connectable conductor cross section multi-wired
0 .. 70mm²
Number of protected poles
1
Connectable conductor cross section solid-core
0 .. 50mm²
Voltage type
DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Rated impulse withstand voltage Uimp
8kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
