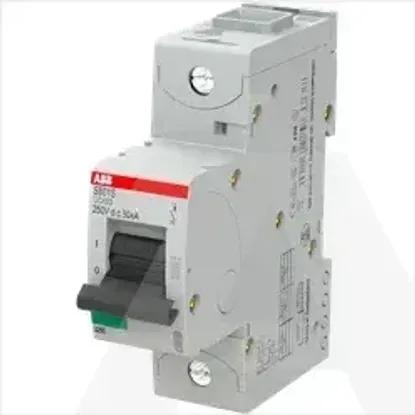

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Width in number of modular spacings1
Connectable conductor cross section solid-core0 - 50mm²
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 60°C
Pollution degree2
FrequencyHz
Current limiting class3
Built-in depth82.5mm
Rated insulation voltage Ui1000V
Over voltage category3
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
Voltage typeAC/DC
Rated voltage250V
Number of protected poles1
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated current63A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
