Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
FrequencyHz
Release characteristicB
Number of poles (total)1
Rated insulation voltage Ui1000V
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated impulse withstand voltage Uimp8kV
Rated current63A
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Current limiting class3
Rated voltage250V
Voltage typeDC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Over voltage category3
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 60°C
Built-in depth82.5mm
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Connectable conductor cross section solid-core0 - 50mm²
Degree of protection (IP)IP20
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Width in number of modular spacings1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

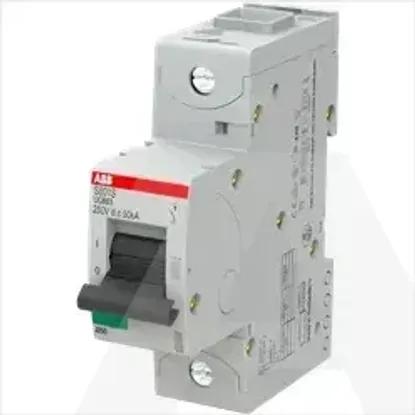

2CCS861001R1635 | S801S-UCB63
