Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui1000V
Release characteristicB
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated voltage500V
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Current limiting class3
Concurrently switching neutral conductorNo
Voltage typeAC/DC
Suitable for flush-mounted installationNo
Width in number of modular spacings2
Over voltage category3
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Number of protected poles2
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 70mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Built-in depth82.5mm
Frequency50 - 60Hz
Rated current40A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

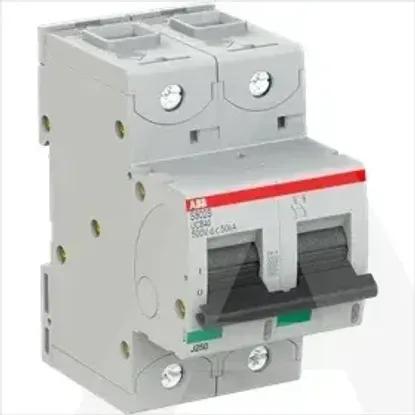

2CCS862001R1405 | S802S-UCB40
