Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current50A
Release characteristicB
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated insulation voltage Ui1000V
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated voltage500V
Suitable for flush-mounted installationNo
Current limiting class3
Over voltage category3
Voltage typeAC/DC
Pollution degree2
Built-in depth82.5mm
Number of protected poles2
Width in number of modular spacings2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Number of poles (total)2
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

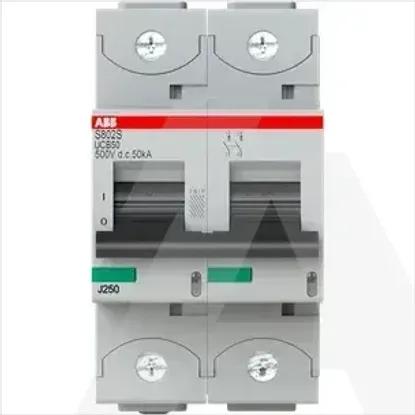

2CCS862001R1505 | S802S-UCB50
