Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage500V
Frequency50 - 60Hz
Built-in depth82.5mm
Over voltage category3
Rated insulation voltage Ui1000V
Width in number of modular spacings2
Current limiting class3
Degree of protection (IP)IP20
Pollution degree2
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 60°C
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Number of protected poles2
Additional equipment possibleYes
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Release characteristicK
Rated current25A
Number of poles (total)2
Voltage typeAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

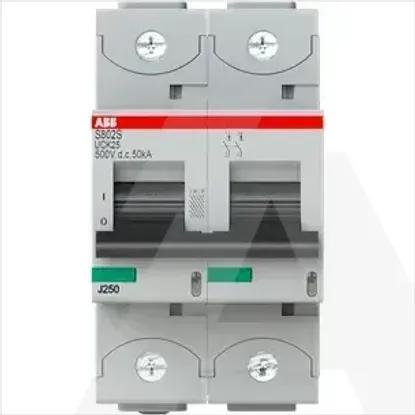

2CCS862001R1517 | S802S-UCK25
