Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Built-in depth82.5mm
Rated insulation voltage Ui1000V
Rated voltage500V
Current limiting class3
Over voltage category3
Frequency50 - 60Hz
Release characteristicK
Rated current50A
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Degree of protection (IP)IP20
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Pollution degree2
Concurrently switching neutral conductorNo
Number of poles (total)2
Width in number of modular spacings2
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Suitable for flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

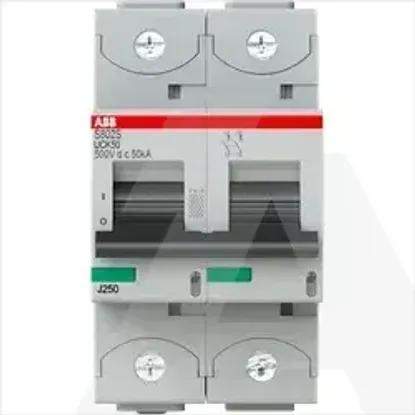

2CCS862001R1577 | S802S-UCK50
