Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Rated voltage500V
Frequency50 - 60Hz
Voltage typeAC/DC
Release characteristicK
Rated current80A
Connectable conductor cross section multi-wired0 - 70mm²
Number of protected poles2
Over voltage category3
Rated insulation voltage Ui1000V
Current limiting class3
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Pollution degree2
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of poles (total)2
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

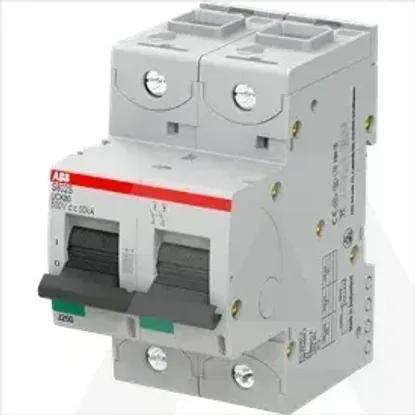

2CCS862001R1627 | S802S-UCK80
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
82.5mm
Rated voltage
500V
Frequency
50 .. 60Hz
Voltage type
AC/DC
Release characteristic
K
Rated current
80A
Connectable conductor cross section multi-wired
0 .. 70mm²
Number of protected poles
2
Over voltage category
3
Rated insulation voltage Ui
1000V
Current limiting class
3
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Pollution degree
2
Concurrently switching neutral conductor
Width in number of modular spacings
2
Connectable conductor cross section solid-core
0 .. 50mm²
Ambient temperature during operating
-25 .. 60°C
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Number of poles (total)
2
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
50kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
