Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicB
Rated insulation voltage Ui1000V
Rated current63A
Number of protected poles2
Number of poles (total)2
Rated voltage500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Current limiting class3
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp8kV
Over voltage category3
Built-in depth82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Frequency50 - 60Hz
Pollution degree2
Voltage typeAC/DC
Width in number of modular spacings2
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

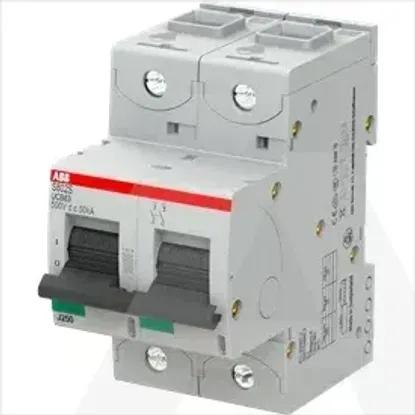

2CCS862001R1635 | S802S-UCB63
