Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp8kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Release characteristicB
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Number of poles (total)2
Current limiting class3
Rated insulation voltage Ui1000V
Width in number of modular spacings2
Connectable conductor cross section multi-wired0 - 70mm²
Degree of protection (IP)IP20
Rated voltage500V
Number of protected poles2
Rated current80A
Suitable for flush-mounted installationNo
Over voltage category3
Connectable conductor cross section solid-core0 - 50mm²
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Built-in depth82.5mm
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

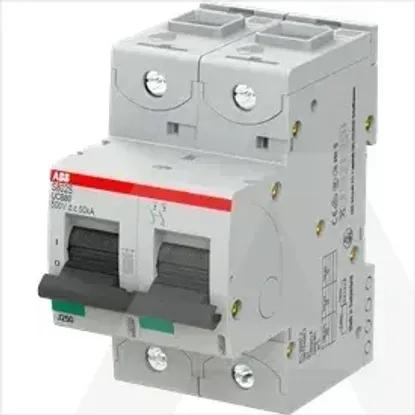

2CCS862001R1805 | S802S-UCB80
