Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Frequency50 - 60Hz
Rated current100A
Rated voltage500V
Voltage typeAC/DC
Release characteristicB
Connectable conductor cross section solid-core0 - 50mm²
Rated insulation voltage Ui1000V
Width in number of modular spacings2
Pollution degree2
Current limiting class3
Over voltage category3
Number of protected poles2
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

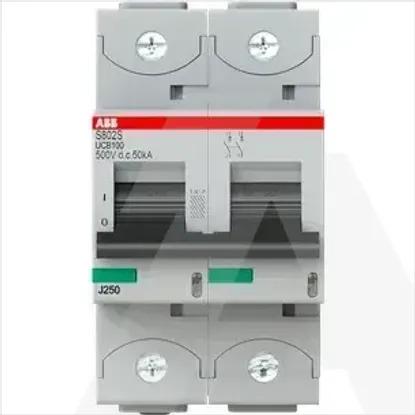

2CCS862001R1825 | S802S-UCB100
