Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Rated insulation voltage Ui690V
Frequency50 - 50Hz
Release characteristicC
Rated current6A
Built-in depth88.5mm
Rated voltage400V
Width in number of modular spacings3
Pollution degree2
Number of protected poles3
Current limiting class3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Over voltage category3
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
Number of poles (total)3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

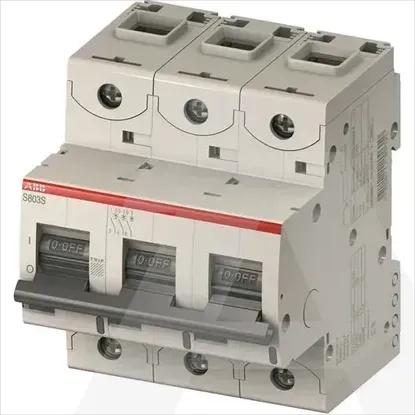

2CCS863001R0064 | S803S-C6
