Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Additional equipment possibleYes
Rated current10A
Rated voltage690V
Over voltage category3
Current limiting class3
Number of protected poles3
Concurrently switching neutral conductorNo
Pollution degree2
Width in number of modular spacings3
Number of poles (total)3
Degree of protection (IP)IP20
Frequency0 - 50Hz
Rated insulation voltage Ui690V
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Built-in depth88.5mm
Release characteristicD
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

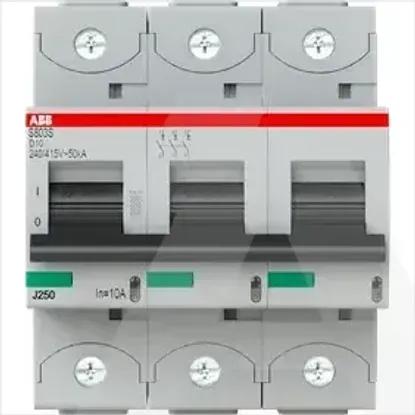

2CCS863001R0101 | S803S-D10
