Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current16A
Rated voltage690V
Release characteristicD
Number of poles (total)3
Rated insulation voltage Ui690V
Number of protected poles3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Frequency0 - 50Hz
Suitable for flush-mounted installationNo
Voltage typeAC/DC
Current limiting class3
Width in number of modular spacings3
Over voltage category3
Pollution degree2
Built-in depth88.5mm
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Ambient temperature during operating-25 - 60°C
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

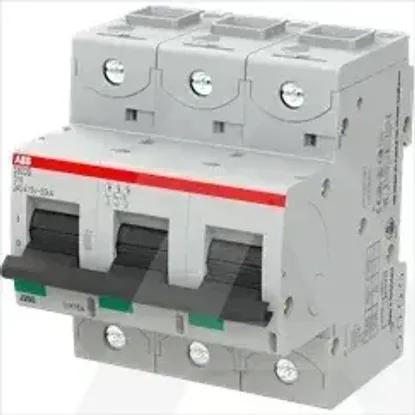

2CCS863001R0161 | S803S-D16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated current
16A
Rated voltage
690V
Release characteristic
D
Number of poles (total)
3
Rated insulation voltage Ui
690V
Number of protected poles
3
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Frequency
0 .. 50Hz
Suitable for flush-mounted installation
Voltage type
AC/DC
Current limiting class
3
Width in number of modular spacings
3
Over voltage category
3
Pollution degree
2
Built-in depth
88.5mm
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0 .. 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Ambient temperature during operating
-25 .. 60°C
Concurrently switching neutral conductor
Additional equipment possible
Connectable conductor cross section solid-core
0 .. 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
