Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)3
Number of protected poles3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Release characteristicB
Rated insulation voltage Ui690V
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Additional equipment possibleYes
Pollution degree2
Width in number of modular spacings3
Built-in depth88.5mm
Current limiting class3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Rated voltage690V
Rated current16A
Connectable conductor cross section solid-core0 - 50mm²
Over voltage category3
Frequency0 - 50Hz
Connectable conductor cross section multi-wired0 - 70mm²
Voltage typeAC/DC
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

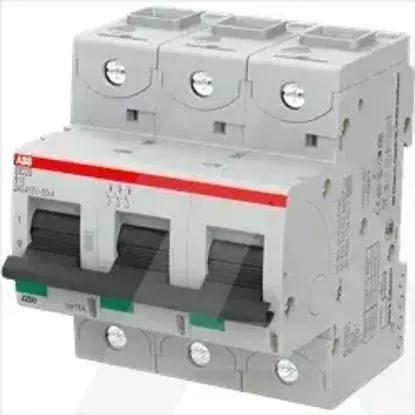

2CCS863001R0165 | S803S-B16
