Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of protected poles3
Rated current20A
Frequency0 - 50Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated voltage690V
Rated insulation voltage Ui690V
Rated impulse withstand voltage Uimp8kV
Voltage typeAC/DC
Suitable for flush-mounted installationNo
Pollution degree2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 70mm²
Ambient temperature during operating-25 - 60°C
Built-in depth88.5mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Concurrently switching neutral conductorNo
Current limiting class3
Over voltage category3
Width in number of modular spacings3
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

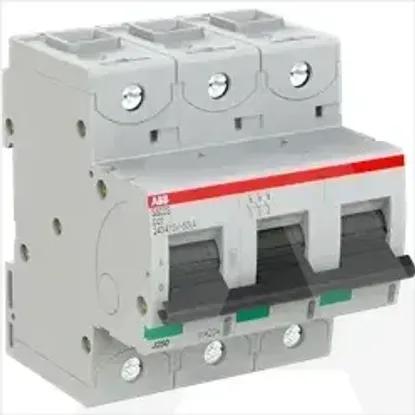

2CCS863001R0201 | S803S-D20
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
D
Number of poles (total)
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Number of protected poles
3
Rated current
20A
Frequency
0 .. 50Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated voltage
690V
Rated insulation voltage Ui
690V
Rated impulse withstand voltage Uimp
8kV
Voltage type
AC/DC
Suitable for flush-mounted installation
Pollution degree
2
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Additional equipment possible
Connectable conductor cross section multi-wired
0 .. 70mm²
Ambient temperature during operating
-25 .. 60°C
Built-in depth
88.5mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Concurrently switching neutral conductor
Current limiting class
3
Over voltage category
3
Width in number of modular spacings
3
Connectable conductor cross section solid-core
0 .. 50mm²
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
