Details

  • •Circuit breakers and fuses

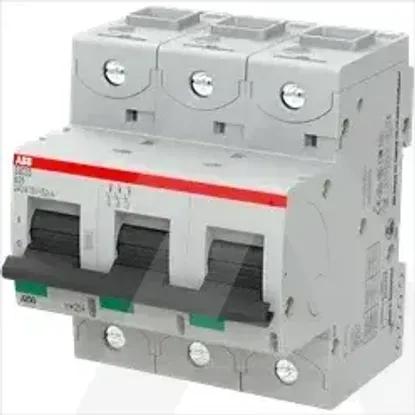

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth88.5mm
Voltage typeAC/DC
Rated voltage690V
Connectable conductor cross section solid-core0 - 50mm²
Over voltage category3
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Current limiting class3
Degree of protection (IP)IP20
Frequency0 - 50Hz
Rated insulation voltage Ui690V
Concurrently switching neutral conductorNo
Pollution degree2
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated current25A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
