Details

  • •Circuit breakers and fuses

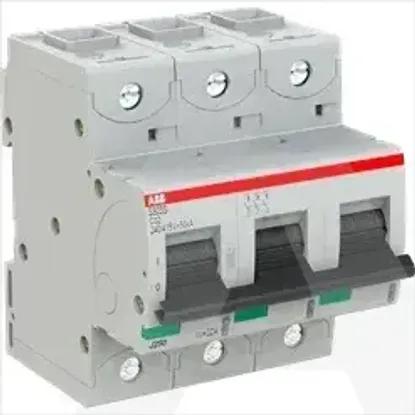

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth88.5mm
Rated voltage690V
Voltage typeAC/DC
Rated insulation voltage Ui690V
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Pollution degree2
Current limiting class3
Over voltage category3
Connectable conductor cross section solid-core0 - 50mm²
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp8kV
Concurrently switching neutral conductorNo
Frequency0 - 50Hz
Width in number of modular spacings3
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Number of protected poles3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated current32A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
