Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Rated insulation voltage Ui690V
Frequency0 - 50Hz
Rated voltage690V
Built-in depth88.5mm
Release characteristicB
Rated current32A
Current limiting class3
Voltage typeAC/DC
Concurrently switching neutral conductorNo
Number of protected poles3
Rated impulse withstand voltage Uimp8kV
Degree of protection (IP)IP20
Width in number of modular spacings3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Suitable for flush-mounted installationNo
Number of poles (total)3
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Pollution degree2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

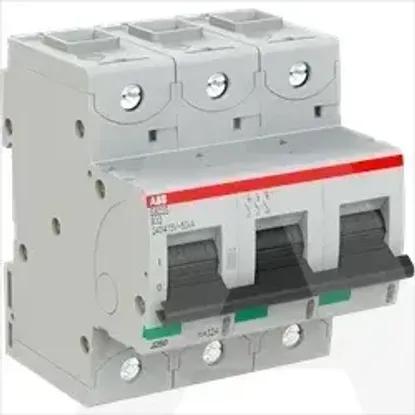

2CCS863001R0325 | S803S-B32
