Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Number of poles (total)3
Rated current16A
Number of protected poles3
Rated voltage690V
Rated insulation voltage Ui690V
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Voltage typeAC/DC
Frequency0 - 60Hz
Current limiting class3
Over voltage category3
Pollution degree2
Additional equipment possibleYes
Width in number of modular spacings3
Built-in depth88.5mm
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 70mm²
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

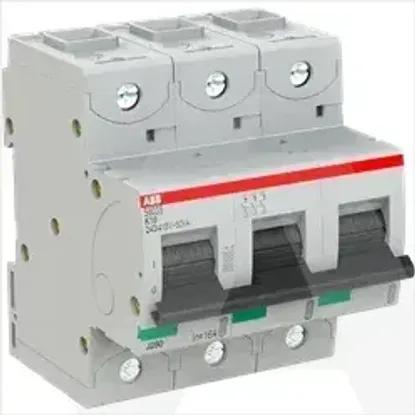

2CCS863001R0467 | S803S-K16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
K
Number of poles (total)
3
Rated current
16A
Number of protected poles
3
Rated voltage
690V
Rated insulation voltage Ui
690V
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Voltage type
AC/DC
Frequency
0 .. 60Hz
Current limiting class
3
Over voltage category
3
Pollution degree
2
Additional equipment possible
Width in number of modular spacings
3
Built-in depth
88.5mm
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0 .. 70mm²
Suitable for flush-mounted installation
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
0 .. 50mm²
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
