Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage690V
Voltage typeAC/DC
Built-in depth88.5mm
Frequency0 - 60Hz
Over voltage category3
Width in number of modular spacings3
Degree of protection (IP)IP20
Rated current20A
Pollution degree2
Current limiting class3
Number of protected poles3
Rated insulation voltage Ui690V
Release characteristicK
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Number of poles (total)3
Ambient temperature during operating-25 - 60°C
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

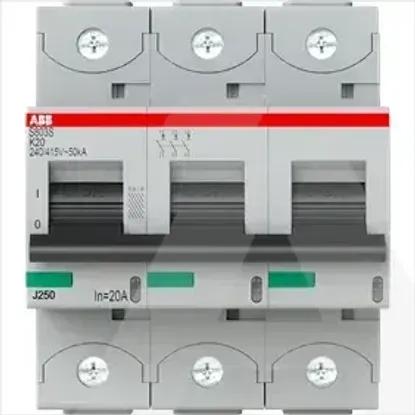

2CCS863001R0487 | S803S-K20
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
690V
Voltage type
AC/DC
Built-in depth
88.5mm
Frequency
0 .. 60Hz
Over voltage category
3
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Rated current
20A
Pollution degree
2
Current limiting class
3
Number of protected poles
3
Rated insulation voltage Ui
690V
Release characteristic
K
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Additional equipment possible
Number of poles (total)
3
Ambient temperature during operating
-25 .. 60°C
Suitable for flush-mounted installation
Connectable conductor cross section solid-core
0 .. 50mm²
Connectable conductor cross section multi-wired
0 .. 70mm²
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
