Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth88.5mm
Voltage typeAC/DC
Rated current25A
Rated voltage690V
Release characteristicKM
Rated insulation voltage Ui690V
Frequency0 - 60Hz
Current limiting class3
Number of protected poles3
Connectable conductor cross section multi-wired0 - 70mm²
Suitable for flush-mounted installationNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section solid-core0 - 50mm²
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-25 - 60°C
Number of poles (total)3
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CCS863001R0516 | S803S-KM25

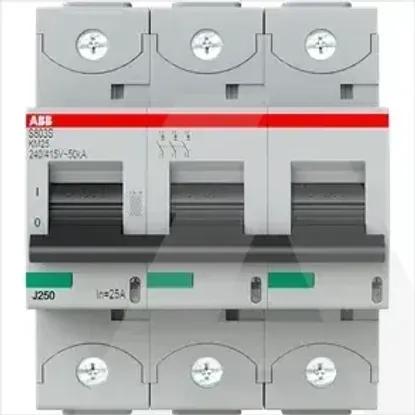

Main Product Image
