Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Release characteristicKM
Rated current32A
Number of poles (total)3
Rated voltage690V
Rated insulation voltage Ui690V
Number of protected poles3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Frequency0 - 60Hz
Concurrently switching neutral conductorNo
Voltage typeAC/DC
Suitable for flush-mounted installationNo
Over voltage category3
Current limiting class3
Additional equipment possibleYes
Pollution degree2
Width in number of modular spacings3
Built-in depth88.5mm
Connectable conductor cross section solid-core0 - 50mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 70mm²
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

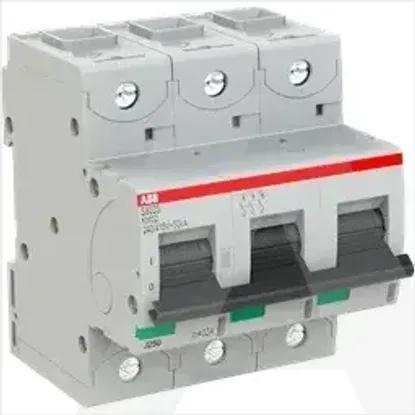

2CCS863001R0536 | S803S-KM32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Release characteristic
KM
Rated current
32A
Number of poles (total)
3
Rated voltage
690V
Rated insulation voltage Ui
690V
Number of protected poles
3
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Frequency
0 .. 60Hz
Concurrently switching neutral conductor
Voltage type
AC/DC
Suitable for flush-mounted installation
Over voltage category
3
Current limiting class
3
Additional equipment possible
Pollution degree
2
Width in number of modular spacings
3
Built-in depth
88.5mm
Connectable conductor cross section solid-core
0 .. 50mm²
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0 .. 70mm²
Ambient temperature during operating
-25 .. 60°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
