Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Release characteristicKM
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Suitable for flush-mounted installationNo
Number of poles (total)3
Rated impulse withstand voltage Uimp8kV
Rated current50A
Rated voltage690V
Rated insulation voltage Ui690V
Concurrently switching neutral conductorNo
Frequency0 - 60Hz
Voltage typeAC/DC
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of protected poles3
Built-in depth88.5mm
Additional equipment possibleYes
Pollution degree2
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Over voltage category3
Degree of protection (IP)IP20
Width in number of modular spacings3
Connectable conductor cross section multi-wired0 - 70mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CCS863001R0576 | S803S-KM50

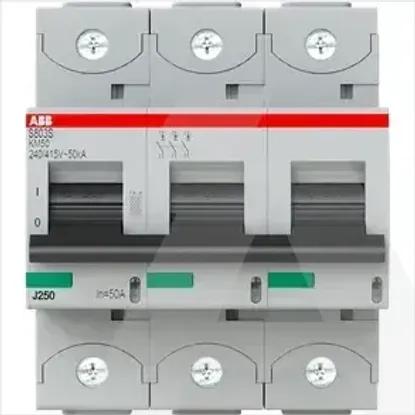

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Release characteristic

KM

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Suitable for flush-mounted installation

Number of poles (total)

3

Rated impulse withstand voltage Uimp

8kV

Rated current

50A

Rated voltage

690V

Rated insulation voltage Ui

690V

Concurrently switching neutral conductor

Frequency

0 .. 60Hz

Voltage type

AC/DC

Current limiting class

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50kA

Number of protected poles

3

Built-in depth

88.5mm

Additional equipment possible

Pollution degree

2

Ambient temperature during operating

-25 .. 60°C

Connectable conductor cross section solid-core

0 .. 50mm²

Over voltage category

3

Degree of protection (IP)

IP20

Width in number of modular spacings

3

Connectable conductor cross section multi-wired

0 .. 70mm²
