Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth88.5mm
Voltage typeAC/DC
Over voltage category3
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Current limiting class3
Frequency0 - 60Hz
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Concurrently switching neutral conductorNo
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Width in number of modular spacings3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Release characteristicK
Number of protected poles3
Number of poles (total)3
Rated current63A
Rated impulse withstand voltage Uimp8kV
Rated insulation voltage Ui690V
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

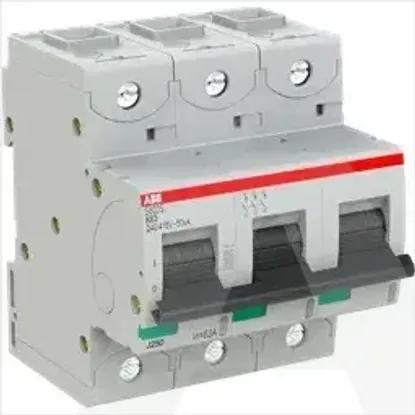

2CCS863001R0597 | S803S-K63
