Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree2
Rated insulation voltage Ui690V
Frequency0 - 60Hz
Current limiting class3
Rated voltage690V
Built-in depth88.5mm
Release characteristicC
Rated current63A
Voltage typeAC/DC
Over voltage category3
Rated impulse withstand voltage Uimp8kV
Width in number of modular spacings3
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of poles (total)3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

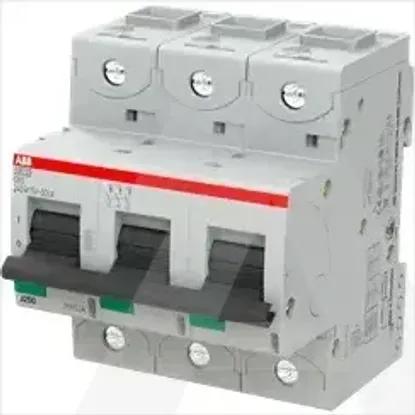

2CCS863001R0634 | S803S-C63
