Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles3
Rated insulation voltage Ui1000V
Number of poles (total)3
Rated current10A
Release characteristicK
Current limiting class3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Voltage typeDC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Over voltage category3
Rated voltage750V
Built-in depth82.5mm
Degree of protection (IP)IP20
Pollution degree2
Width in number of modular spacings3
Frequency0 - 0Hz
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

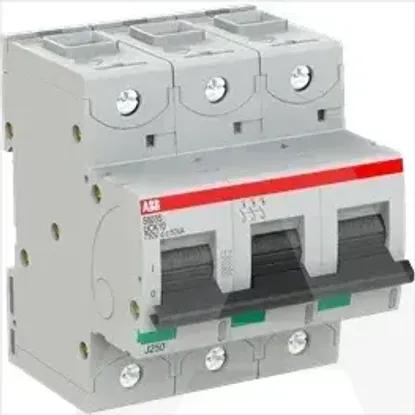

2CCS863001R1427 | S803S-UCK10
