Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current13A
Current limiting class3
Over voltage category3
Frequency0 - 0Hz
Rated insulation voltage Ui1000V
Release characteristicK
Built-in depth82.5mm
Pollution degree2
Voltage typeDC
Rated voltage750V
Width in number of modular spacings3
Number of protected poles3
Degree of protection (IP)IP20
Number of poles (total)3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

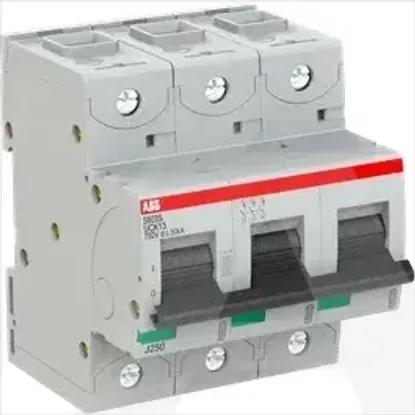

2CCS863001R1447 | S803S-UCK13
