Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage750V
Frequency0 - 0Hz
Voltage typeDC
Built-in depth82.5mm
Rated current20A
Release characteristicK
Current limiting class3
Pollution degree2
Degree of protection (IP)IP20
Width in number of modular spacings3
Rated insulation voltage Ui1000V
Over voltage category3
Number of protected poles3
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Concurrently switching neutral conductorNo
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

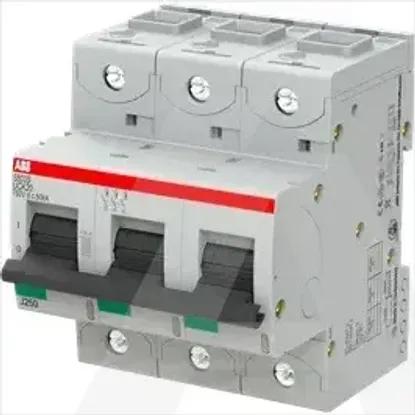

2CCS863001R1487 | S803S-UCK20
