Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Rated voltage750V
Rated current100A
Voltage typeDC
Over voltage category3
Current limiting class3
Frequency0 - 0Hz
Pollution degree2
Rated insulation voltage Ui1000V
Release characteristicK
Width in number of modular spacings3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V50kA
Number of poles (total)3
Connectable conductor cross section multi-wired0 - 70mm²
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50kA
Rated impulse withstand voltage Uimp8kV
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

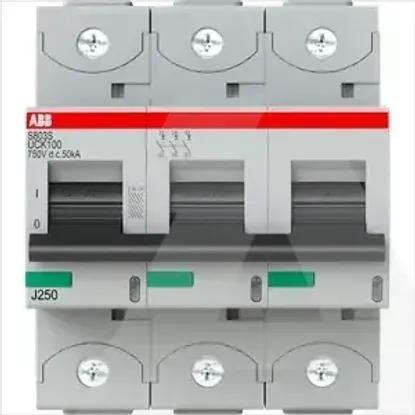

2CCS863001R1637 | S803S-UCK100
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
82.5mm
Rated voltage
750V
Rated current
100A
Voltage type
DC
Over voltage category
3
Current limiting class
3
Frequency
0 .. 0Hz
Pollution degree
2
Rated insulation voltage Ui
1000V
Release characteristic
K
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
50kA
Number of poles (total)
3
Connectable conductor cross section multi-wired
0 .. 70mm²
Number of protected poles
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Ambient temperature during operating
-25 .. 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
50kA
Rated impulse withstand voltage Uimp
8kV
Connectable conductor cross section solid-core
0 .. 50mm²
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
