Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated insulation voltage Ui690V
Release characteristicK
Built-in depth82.5mm
Rated current50A
Rated voltage690V
Width in number of modular spacings4
Pollution degree3
Current limiting class3
Number of protected poles4
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Voltage typeAC
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section multi-wired0 - 70mm²
Number of poles (total)4
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Suitable for flush-mounted installationNo
Over voltage category3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

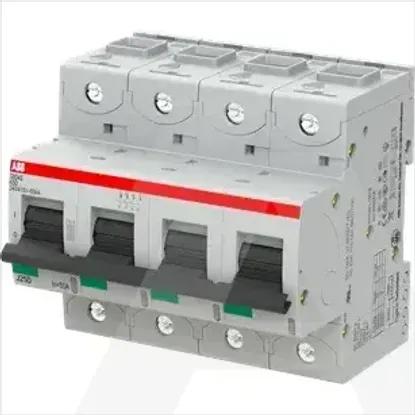

2CCS864001R0577 | S804S-K50
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Frequency
50 .. 60Hz
Rated insulation voltage Ui
690V
Release characteristic
K
Built-in depth
82.5mm
Rated current
50A
Rated voltage
690V
Width in number of modular spacings
4
Pollution degree
3
Current limiting class
3
Number of protected poles
4
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Voltage type
AC
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Connectable conductor cross section multi-wired
0 .. 70mm²
Number of poles (total)
4
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
0 .. 50mm²
Suitable for flush-mounted installation
Over voltage category
3
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
