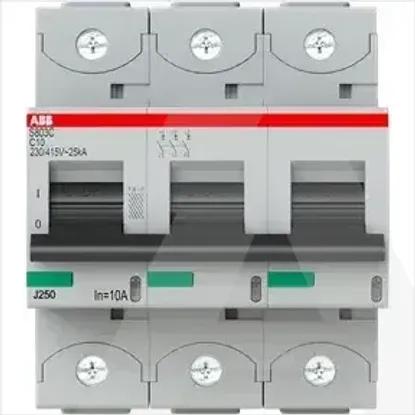

2CCS883001R0104 | S803C-C10
Code: 1548158
ManufacturerABB
Catalog number2CCS883001R0104
TypeS803C-C10
CategoryMiniature circuit breaker (MCB)
EAN code7612271212148
Details
- •MINIJATURNI PREKIDAC, 3P, 10A, C KRIVULJA, 25kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Explosion-proofNo
Frequency50 - 60Hz
Current limiting class3
Width in number of modular spacings3
Suitable for flush-mounted installationNo
Rated insulation voltage Ui500V
Over voltage category4
Pollution degree3
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Power loss4.5W
Rated voltage440V
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Built-in depth82.5mm
Rated impulse withstand voltage Uimp8kV
Number of protected poles3
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current10A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
